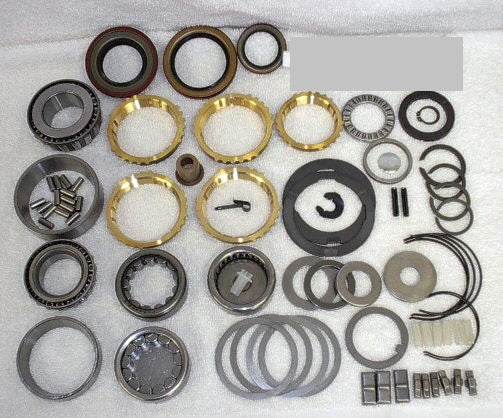

T5 Non World Master Rebuild Kit
T5 Non World Master Rebuild Kit.
Includes:
T5 non world kit will fit:
GM Camaro & Firebird 1982-87
GM S10 / S15 Pickup 1982-2004
Ford 1979-84
AMC Jeep 1983-85
Datsun/Nissan
If you are unsure of the year and the unit is disassembled, if it has ALL brass synchro rings, it is a non world class. Feel free to email us to ensure you are getting the correct kit for your transmission.
If your unit has a tag bolted to the tailhousing 1352-000-XXX, the following #'s are non world T5 transmissions:
001, 002, 004 thru 008, 010, 012, 013, 015 thru 018, 026 thru 028,
032 thru 035, 042, 043, 047 thru 049, 051, 052, 054 thru 056, 058,
059, 061, 062, 065 thru 068, 070 thru 072, 074 thru 078, 080, 081,
083 thru 086, 102, 107, 108, 110, 136, 145, 146, 151, 156, 157,
164, 166, 170, 181 thru 183, 185, 187, 189 thru 193, 201, 206,
208, 211, 216, 234, 239, 245, 250, 252, 259
1st, 2nd, 3rd, 4th and 5th brass synchronizer rings
front and rear seals - Rear seal is not available for Nissan/Datson applications
rear tail housing bushing - Not available for Nissan/Datson applications Bushings may need to be reamed or honed after installation for proper fit.
input roller bearings (15)
Koyo & Torrington Hi Cap heavy duty Bearings included:
all main shaft bearings
all counter shaft bearings
countershaft to case thrust washer
shift fork pads
front bearing preload shims
synchronizer keys
retaining springs
shifter bushing
speedo clip
c-clip
funnell
o-ring
roll pin
snap rings
spacer washers
